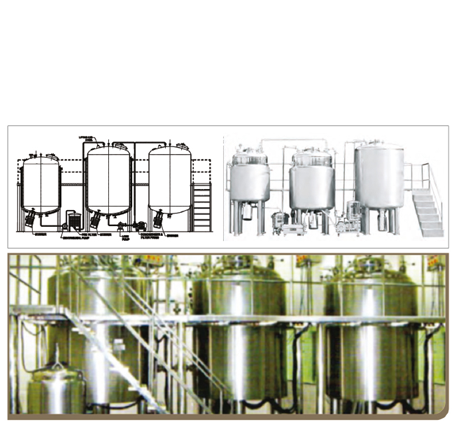

Liquid / Syrup / Oral Manufacturing Plant

Salient Features :

  • The Automatic Liquid manufacturing plant is designed to be operated only by one operator and one helper.
  • All material transfers are done by Vacuum or by Transfer Pumps.
  • All the Vessels are CGMP (Paint free Construction).
  • The Gaskets used are of Silicon (Food Grade).
  • All Contact parts are of S.S. 316 Quality material (SS304 provided on demand) & Finished to mirror finish and crevice free.
  • The entry of Stirrer & High Speed Emulsifier are from top. In-Line Emulsifier (As per customer choice) provided on Demand. (Optional in Liquid Manufacturing Plant).
  • All Vessels are suitable for internal pressure of 1 KG. / SQ. CM. and Hence can be Sterilized.
  • All Pipes, Pipe Fittings and Valves are of SS316 / Ss304 (As per customer requirement) Seamless Quality, Internally Electro Polished, with Tri-Clover Ended Joints.
  • Transfer pumps provided to Transfer ready product to filling line.
  • The Entire plant is Equipped with CIP & SIP Connection, so that customer can us this facility, If have CIP & SIP Equipment.
  • All Values of temperature & time of the plant are indicated digitally on the Controal Panel. Ampere indicates on Ampere Meters. (Automatic Liquid manufacturing Plant).
  • A Micro processor Based Automatic operating Liquid Manufacturing Plant can be Designed as per Requirement (Optional).
  • All the Inlet & Outlet connections are provided with Tri Clover joints, which are very easy for cleaning & Replacement.
